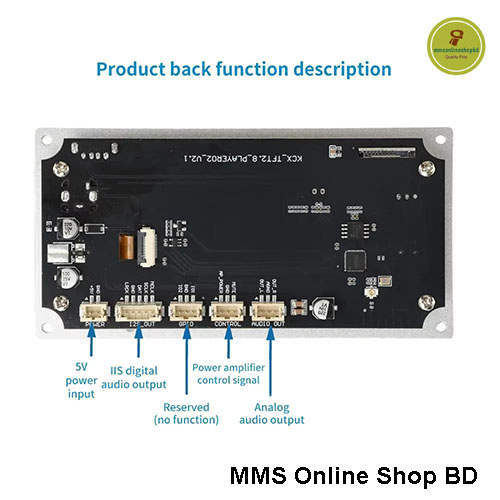

2.8 Inch TFT Color LCD Lossless MP3 Decoder Board Bluetooth 5.3 Stereo Audio FLAC WAV APE Decoding

1. It is a multifunctional high-fidelity stereo sound audio decoder board which integrates Bt audio decoding, TF card, U disk music file decoding, computer USB sound card, LINE input.
2. 2.8-inch 320 * 240 pixels IPS color screen to do playback status and decoding related information display. Simultaneously support analog audio and digital audio (I2S) output function.
3.3.5mm stereo line-in connector for inputting audio signals from cell phones, computers, MP3 players and other lines.
4. Support SBC/AAC audio transmission protocol in Bt mode, support Bluetooth lyrics song title and other ID3 information display, and support spectrum display.
5. Built-in equalizer preset 7 EQ scenes + 1 custom EQ scenes, can be very good with the speakers and personal listening preferences to choose and adjust to their own sound.

Parameter:
Support Simplified Chinese, Traditional Chinese and English display
Operating voltage: DC 5V-12V (need regulated power supply)
Standby current: 20mA
Operating current: 30-180mA
Audio output signal power: ≤50mW
Audio output signal-to-noise ratio: SNR≥104db
Output audio signal level: ≤2.8Vp-p
Number of audio output channels: 2 channels
Audio DAC hardware bit width: 24bit
Bluetooth receiving distance: about 10 meters
Bluetooth version: V5.3+BR+EDR
Screen specification: 2.8 inch 320*240 pixels IPS screen
Product size: 13.5*6.95*3.5cm

Package include:
Decoder board module *1
M3 hexagonal wrench *1
M3X16 hexagonal screws + nuts *4
Remote control *1
3.5mm audio jack cable *1
PH2.0/5PIN to Dupont cable*1
PH2.0/3PIN cable*2
PH2.0/2PIN power cable*1
